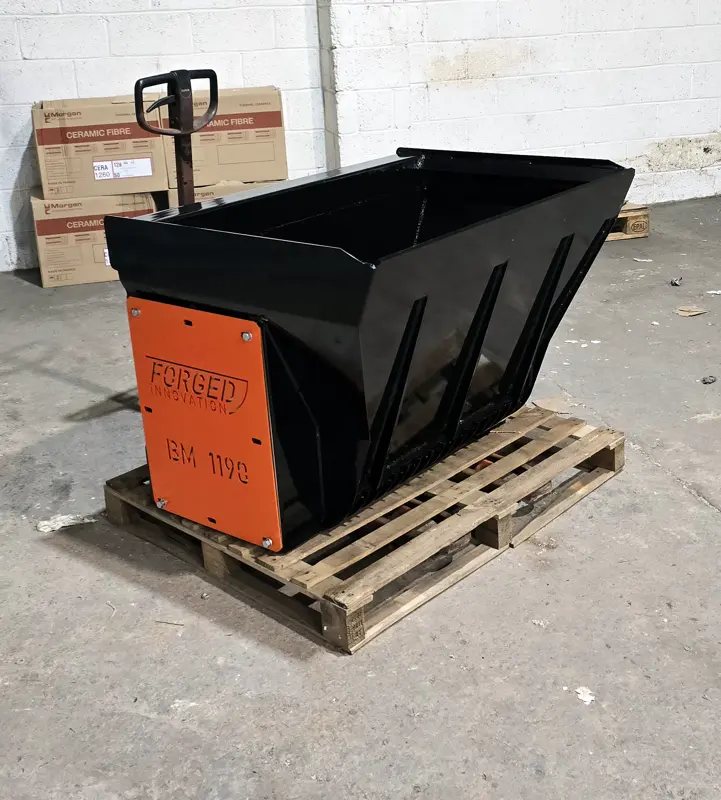

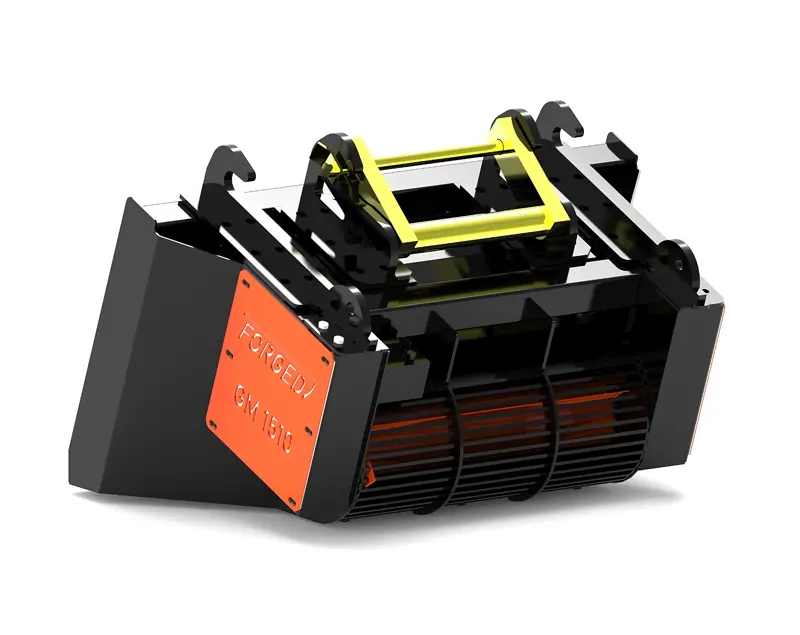

BM – Biochar Mill
Raw char comes out in mixed sizes up to 50 mm. Soil, compost, feed and concrete uses need a consistent 0–5 or 0–10 mm grade with low dust.
| Model range | BM-1190 / BM-1500 / BM-2000 | |
| Capacitytypical | 0.5–4 | t/h |
| Output sizetypical | 0–5 / 0–10 | mm |
| Drive powertypical | 5.5–22 | kW |
| Materials | 304 stainless hopper option; mild steel body; Hardox / cast wear parts | |
| Power | 400 V / 3-ph / 5.5–22 kW, or tractor PTO/hydraulic | |
Typical = indicative range. Every unit is sized to your material and duty, and confirmed on the quote.
Where it’s used
- Sizing for soil amendment, compost blending, feed additive, concrete/cement substitute
For: Biochar producers, blenders, compost sites, contractors (mobile)
Why ours

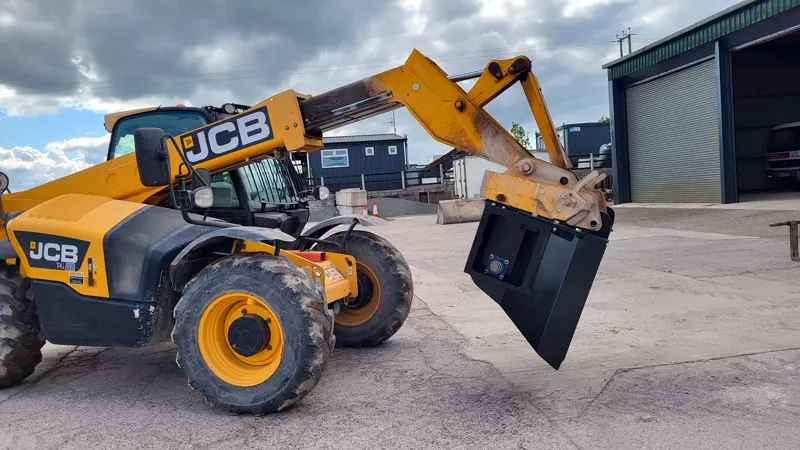

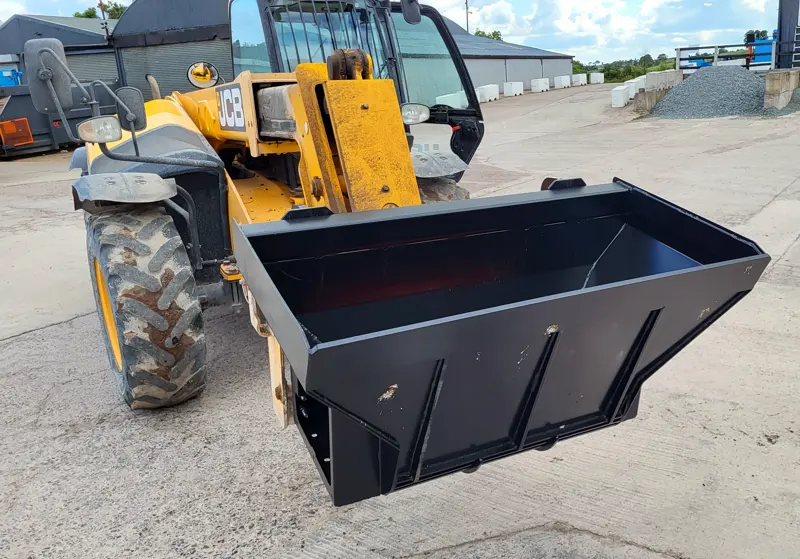

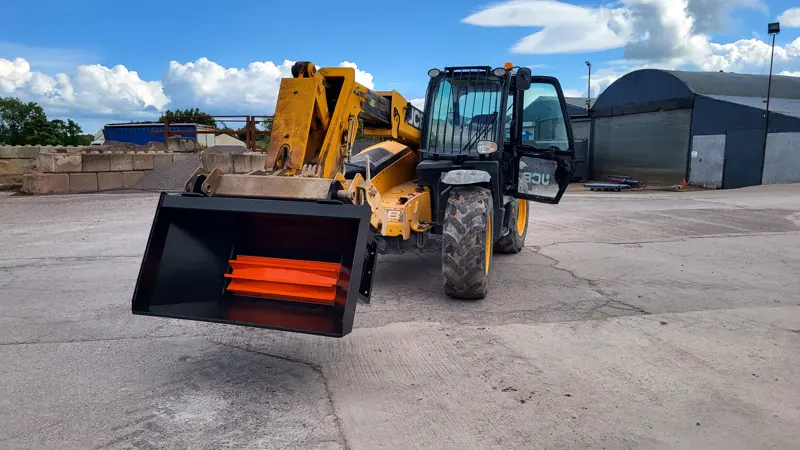

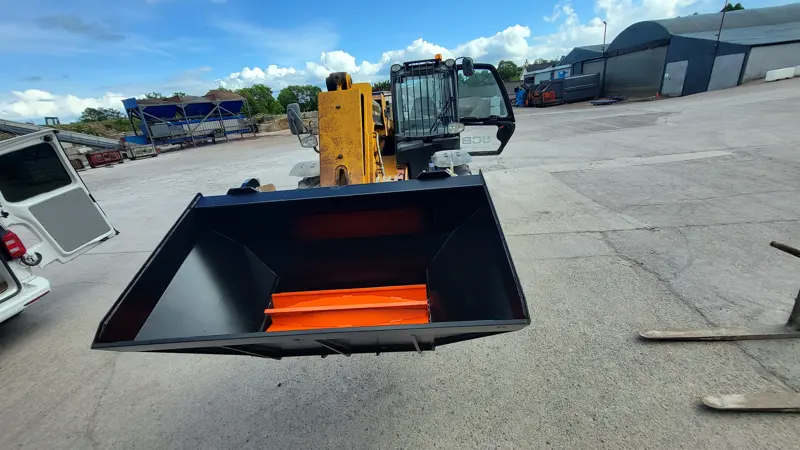

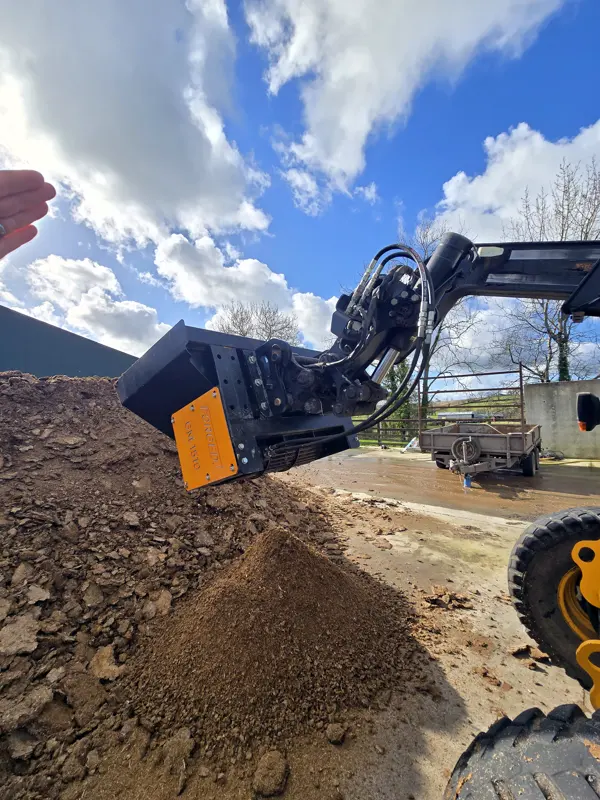

- Electric or hydraulic drive, static or mobile
- can run on damp (~30%) char to suppress dust
What you get
- DoC
- O&M manual
- GA drawing
- electrical schematics
- spares list
- noise data
Options: BM-1190, BM-1500 or BM-2000 (working width, mm); Electric static; hydraulic/PTO mobile; screen sizes; dust extraction; discharge auger
Complete the line
- Marking
- CE
- Standards
- Supply of Machinery (Safety) Regs 2008 / EU 2006/42 (→ 2023/1230 from Jan 2027); EN ISO 12100; EN 60204-1; EN ISO 13857
What does the model number mean?

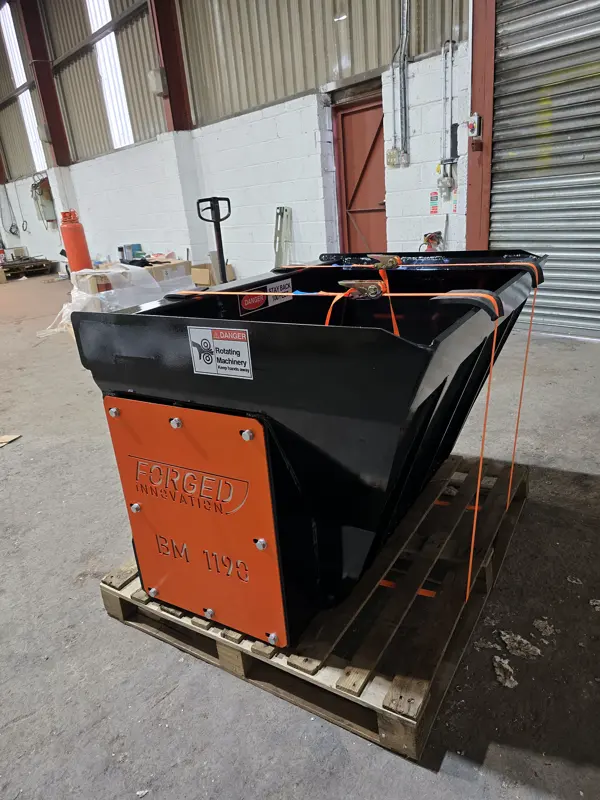

It is the working width in mm. Three sizes: BM-1190, BM-1500 and BM-2000.
What is the lead time?
Typically 6–12 weeks from an approved general arrangement drawing.
Can you fit it to our existing plant?
Yes. We survey the site, draw the interface and build to suit your flanges, heights and controls.
Do you install and commission?
Yes. We deliver, install, wire, test and commission, or supply for your own team to fit.
Tell us your material and tonnage. We'll size it.
Send photos, drawings or just a description. You get a sized proposal and a firm price.
